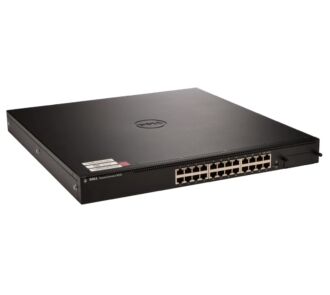

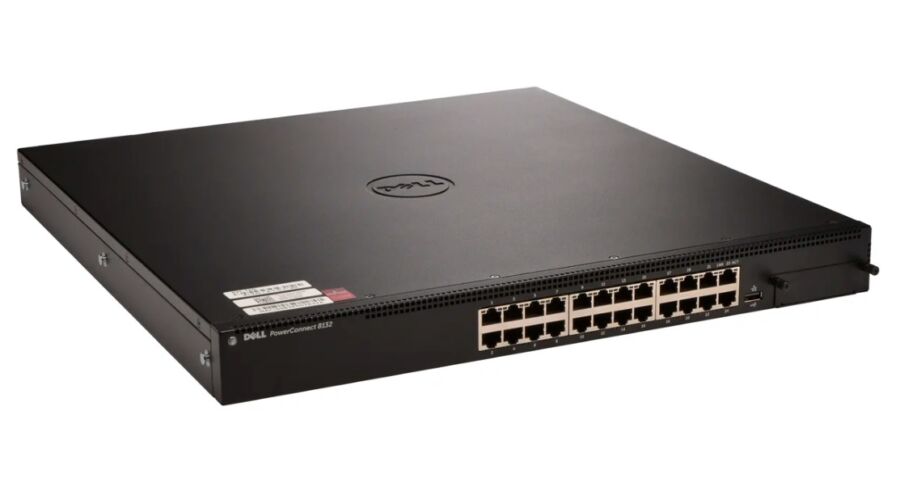

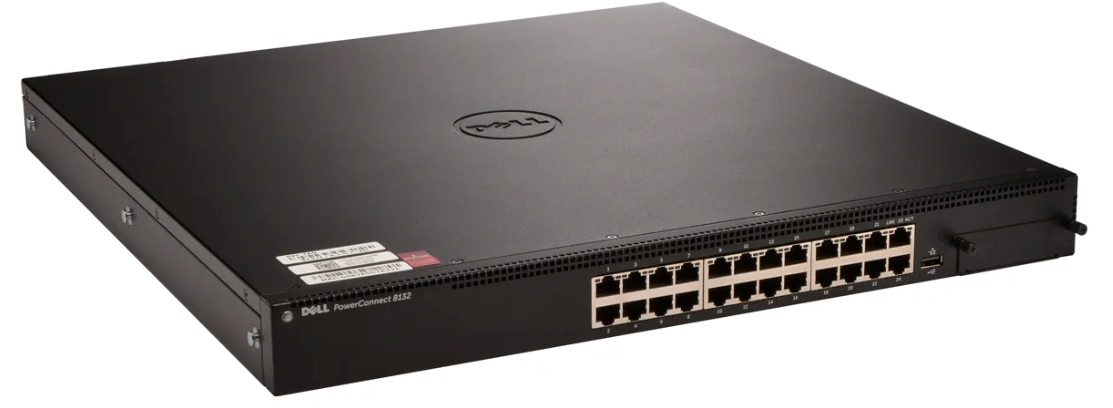

Dell PowerConnect 8132 24 Port 10Gb Base-T Switch
Ár:
199.900 Ft
+ ÁFA ( 253.873 Ft )
Cikkszám: | PTM0F |
Készlet: | Raktáron |
Szerezhető hűségpontok: | 254 |
Várható szállítási díj (bruttó összeg): | 3.200 Ft |
Termékleírás
Port types | 24x Base-T 10Gb/1Gb ports; upgradable QSFP+/4x10GbE/stacking ports |
Port Attributes | Auto-negotiation for speed, duplex mode and flow control Auto MDI/MDIX Port mirroring AFlow-based port mirroringBroadcast storm controlSupports DCB requirements including PFC (802.1Qbb), ETS (802.1Qaz), DCBx, iSCSI TLV 2.2, iSCSI OptimizationUp to 8,160 Routes SupportedEase-of-Use Compellent Macro for setting up storage connectionsPorts support 1Gb and 10Gb transceivers for SFP/SFP+ and 100Mb, 1Gb and 10GBASE-T for RJ-45 environments and 40Gb transceivers for QSFP environments |
Management | Web-based management interfaceIndustry-standard CLI accessible via Telnet, Out-of-Band Ethernet or Local Serial Port SNMPv1, SNMPv2c and SNMPv3 supportedLLDP-MED; SNTPiSCSI Auto ConfigurationMultiple configuration file upload/download supportedTFTP transfers of firmware and configuration filesDual firmware images on-boardFour RMON groups supported (history, statistics, alarms and events)Statistics for error monitoring and performance optimization including port summary tablesBootP/DHCP IP address management supportedSyslog remote logging capabilitiesPre-defined roles for simplified administration of the switch |
Quality of service | Layer 2 Trusted Mode (IEEE 802.1p tagging) Layer 3 Trusted Mode (DSCP)Layer 4 Trusted Mode (TCP/UDP)Advanced Mode using Layer 2/3/4 flow-based Policies, including metering/rate limiting, marking and bandwidth guarantees8 Priority Queues per PortAdjustable Weighted-Round-Robin (WRR) and Strict Queue SchedulingPort-based QoS Services ModeFlow-based QoS Services ModeIPv4 and IPv6 support |
Security | Switch access password protection User-definable settings for enabling or disabling Web, SSH, Telnet, SSL management accessIP Address filtering for management access via Telnet, HTTP, HTTPS/SSL, SSH and SNMPRADIUS and TACACS+ remote authentication for switch management accessSSLv3 and SSHv2 encryption for switch management trafficManagement access filtering via Management Access ProfilesIEEE 802.1x-based edge authentication802.1x monitor mode to aid in.1x troubleshootingUp to 100 Access Control Lists (ACLs) supported with up to 1k rules per ACLTACACS+ per-command authorizationTACACS+ accounting |
VLAN | IEEE 802.1Q tagging and port-based, up to 4,000 user-configurable VLANs (up to 1000 simultaneous)Private VLAN and edge extensions |
Layer2 multicast | IGMP v1/v2/v3 snooping; IGMP snooping for IP multicast supportIGMP Querier PIM-SM, PIM-DM |
Other switching features | Link Aggregation with support for up to 72 link aggregation groups (LAGs) per switch and up to 8 member ports per LAG (IEEE 802.3ad); LACP support (IEEE 802.3ad)Support for unicast NLB (multicast NLB not supported)Jumbo frame support up to 9K |
Availability | Spanning Tree (IEEE 802.1D) and Rapid Spanning Tree (IEEE 802.1w) with Fast Link Support; Multiple spanning trees (IEEE 802.1s)Spanning Tree optional features – STP root guard, BPDU guard, BPDU filteringDual firmware images; Supports Virtual Redundant Routing Protocol (VRRP)Cable diagnosticsSFP/SFP+ transceiver diagnostics |
Layer 3 routing protocols | Static routes; Routing Information Protocol (RIP) v1/v2Open Shortest Path First (OSPF) v1/v2/v3Virtual Redundant Routing Protocol (VRRP)Classless Inter-Domain Routing (CIDR)Internet Control Message Protocol (ICMP)ICMP Router Discover Protocol (IRDP)Address Resolution Protocol (ARP)Internet Group Management Protocol (IGMP) v1/v2/v3Distance-Vector Multicast Routing Protocol (DVMRP)DHCP – Helper/RelayLayer 3 routing performanceUp to 512 RIP RoutesUp to 8K IPv4/4K IPv6 OSPF RoutesUp to 2,000 Multicast Forwarding EntriesUp to 4,000 ARP entries |
Vásárlói vélemények
Erről a termékről még nem érkezett vélemény.
Írja meg véleményét!
Állapotra vonatkozó ismertető
"New" az a termék, melyet korábban még nem használtak. A "New" termék elérhető gyári és/vagy ServerElite garanciával. A "New" termék nem minden esetben rendelkezik az eredeti csomagolással.
"Refurbished" nevezzük azt a terméket, melyet korábban már használtak, de a használat során a termék megőrizte kiváló állapotát. A burkolat külső részén előfordulhat használatból eredő koszolódás, karcolás.
Minden "New" és "Refurbished" szerver teszetelés, firmware update, BIOS update és factory reset-en megy keresztül az értékesítés előtt.
